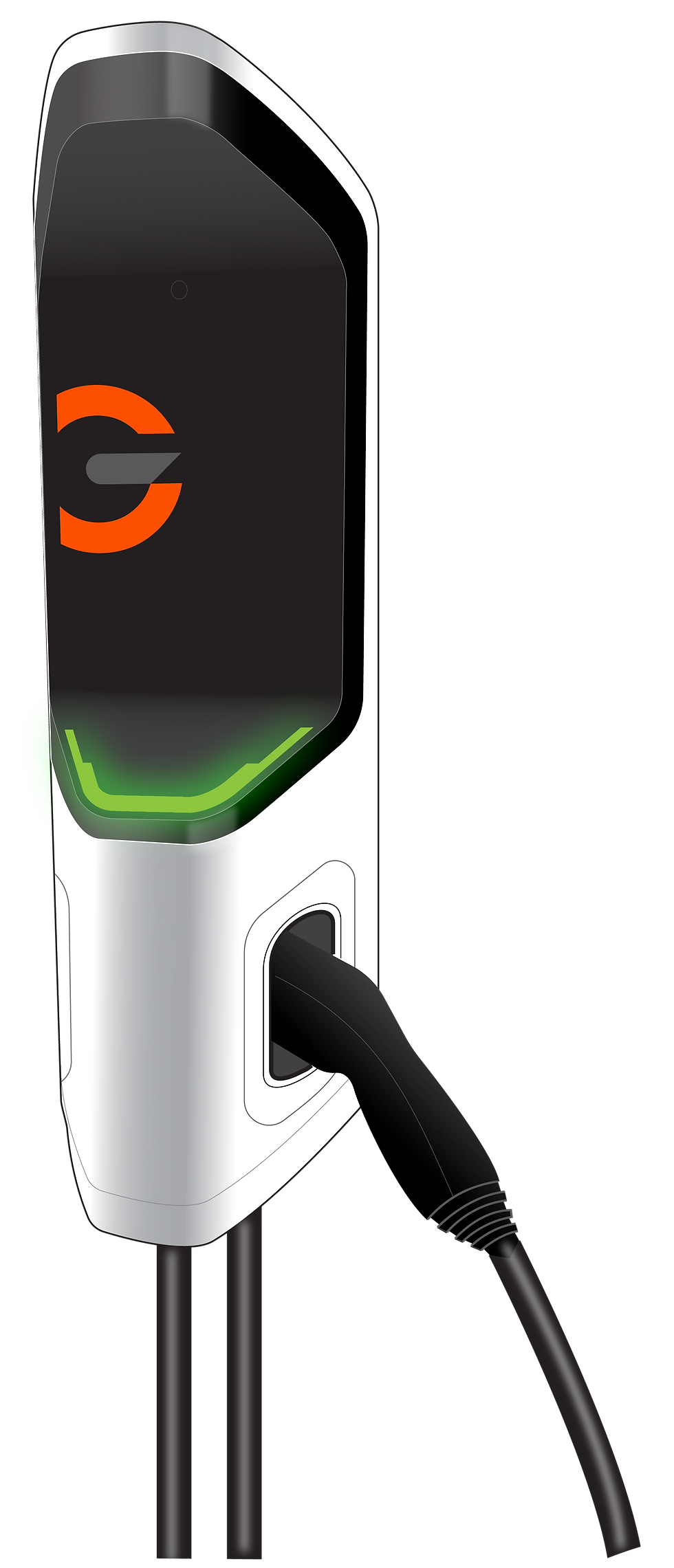

PRIME MINI
HOME AC CHARGER
G9EV’s 19.2kW best-in-class Level 2 Home charger 80A output ensuring max power delivery*
The Prime Mini is a highly efficient 19.2 kW Level 2 AC home charger engineered for effortless daily charging in your garage or driveway. Built to last through every season, its IP65-rated, UV-resistant enclosure reliably withstands extreme weather conditions from -40°C to +50°C. Designed for ultimate convenience, it delivers a full charge in as little as 8 hours, simply plug in to start charging instantly, with no mandatory setup required. Enjoy a completely frictionless doorstep experience, with intuitive app connectivity and smart tracking features available whenever you want to monitor your sessions and schedule charging around your lifestyle.
THIN PROFILE
DESIGN
LED
INDICATOR
WIFI , ETHERNET
CONNECTED
Technical Specs
Available Power level
19.2 kW
Unit Dimensions
28.25” Height
8.75” Width
8.5” Depth
WIFI Connected
OTA Updates
Weather Proof
IP65
ACT INPUT
Voltage: 208/240 VAC
Breaker Ratings:
32A- Rating 40A
40A- Rating 50A
48A- Rating 60A
Single Connector: 3 Wire (L1,L2 & G)Double Connector: 5 Wire (L1, L1, L2, L2 & G)
AC OUTPUT PER CONNECTOR
7.7 kW at 240VAC
6.6 kW at 208VAC
CONNECTORS
SAE J1772 Type 1
OPERATING TEMPERTURE:
-20C to 50 C
- 4° F to +122° F
CERTIFICATIONS
TUV Rheinland UL 2231-1, UL 2231-2, UL 2594
ENERGY STAR- Double Ports Only
COMMUNICATIONS
TUV Rheinland UL 2231-1, UL 2231-2, UL 2594
ENERGY STAR- Double Ports Only
CHARGE TIME FOR AVERAGE EV WITH 80 kWh
CAPACITY GOING FROM 20-80%
32A | 6.25Hr
40A | 5Hr
48A | 4.2Hr
COMMUNICATIONS
Cellular
Ethernet
CORD LENGTH
18 Feet
PROTOCAL
OCPP 1.6J
ENCLOSURE
Type 3R Aluminum
USER INTERFACE
LED Indicators
RFID Card Reader
OPTIONS
Wall Bracket
Pedestal Mount
Branded Door Graphics
ACT INPUT
Voltage Range: 340V-528V 3Φ (3P+PE)
Rated Voltages:
380V - 400V - 415V - 440V - 480V 3Φ (3P+PE)
Max. Input Current 54A, 70A Breaker Included In Pedestal
Frequency 50Hz/60Hz
Power Factor Greater Than 0.99
Full Load Efficiency> 95%
PROTECTION
Input Protection: SPD, OCP, OVP, OTP , OPPOutput Protection: IMD,OCP, OVP, OTP, SCP
COMMUNICATIONS
External: Ethernet and 4G
Internal: CAN bus/Ethernet/RS485/RS232
DC OUTPUT
Output Voltage Range CCS: 150~1000Vdc NACS: 150~1000Vdc
Max. Output Current CCS: 100A NACS: 100A
Connector Options (Based on Customer Specs):
2 CCS/2 NACS/1 CCS and 1 NACS
Voltage Accuracy +/- 0.5%
Current Accuracy +/-1%
ENVIRONMENTAL
Rated Temperature Range -58F to 120F, Power
Derating Starts at 126F
Operating Temperature Range -58F to 158F
Humidity 5%~95% RH, Non-Condensing
Altitude ≦ 6,562 FT
Aluminum Type 3R Rainproof Enclosure
Air-Cooled System
USER INTERFACE + CONTROL
Stop Button With RGB Indicators
PCI Compliant Payment Terminal (Tap/Insert/Swipe/NFC)
User Authentication RFID (Version with Payment Terminal Only): Supports ISO 14443A/B
OCPP 1.6J and 2.0.1 (Networked Version)
REGULATION
Compliance UL 2202, UL 2331-1, UL2231 - 2, UL50E, CSA C22.2 No
107.1/CSA C22.2 No 281.1-12/CSA C22.2 No 281.2-12, cCSAus
Charging Interface ISO15118 (CCS1/NACS)
AC INPUT
Voltage Range: 208/240V L1,L2, single-phase
OUTPUT POWER
19.2kW
OUTPUT CURRENT
Up to 80A
CONNECTORS
Type1 (J1772)
COMMUNICATIONS
Wi-Fi, Ethernet
PROTOCOL
OCPP 1.6J
ENCLOSURE
High-quality UV-stabilized PC, IP65 / IK08
OPERATING TEMPERATURE RANGE
-40C to 50C
INSTALLATION
Wall mounted
UPDATES
Seamless OTA Updates
